NEMA17 42mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

Name: NEMA17 42mm 2phase closed loop stepper motor with planetary gearbox stepper motor with encoder and planetary reducer
Brand: KIMBROUGH
Price: 1 USD

Brand Name : KIMBROUGH

Model Number : 42HSEPG33, 42HSEPG38, 42HSEPG47, 42HSEPG60

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pc

Payment Terms : T/T, Paypal, Western union

Supply Ability : 999

Delivery Time : in stock

Packaging Details : carton

Contact Now

NEMA17 42mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

Planetary gearbox specifications

Technical Data		1 stage	2 stage
Reduction ratio		4, 5, 10	16, 20, 25, 40, 50, 100
Length L1:	mm	42	52
Rated load:	Nm	≤15	≤25
Efficiency:	%	95	90
Backlash:	arcmin	≤15	≤25
Weight:	KG	0.4	0.6
Rated input speed:	rpm	3000	3000
Max input speed:	rpm	5000	5000
Safety class:	IP	65	65
Lubrication:		Life grease lubrication	Life grease lubrication
Noise:	dB	≤45	≤45
Service life:	h	~20000	~20000

Specifications

Model	Length(L:mm)		Motor Holding Torque (N.m)	Rated Current (A)	Resistance/Phase (Ω)	Inductance/Phase (mH)	Rotor Inertia (g.cm²)	Weight(kg)			Matched Driver
Model	1-stage	2-stage	Motor Holding Torque (N.m)	Rated Current (A)	Resistance/Phase (Ω)	Inductance/Phase (mH)	Rotor Inertia (g.cm²)	1-stage	2-stage		Matched Driver
42HSEPG33	98	108	0.2	1.5	1.4	1.4	35	0.9		1.1	HSE57
42HSEPG38	104	114	0.4	1.5	2.3	4.3	54	1.0		1.2
42HSEPG47	112	122	0.6	2.5	0.9	1.6	72	1.1		1.3
42HSEPG60	125	135	0.8	2.5	1.0	2.4	110	1.15		1.35

Note: Other reduction ratio is acceptable, it can be customized according to customers’ requirements.

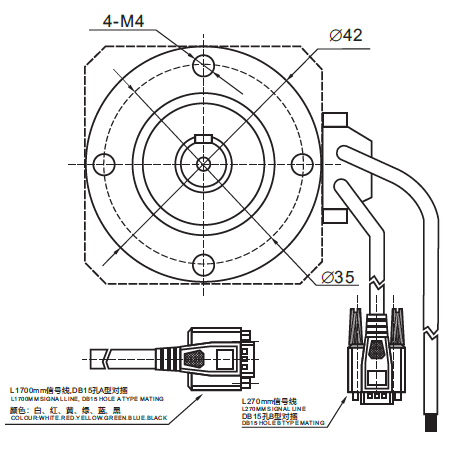

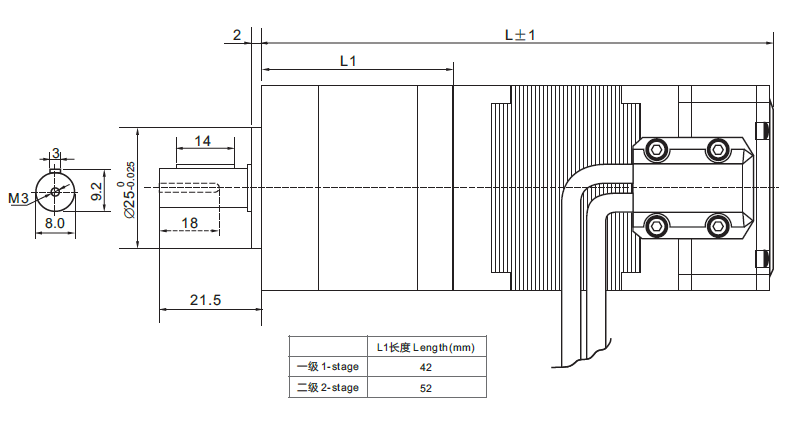

Dimension unit:mm

NEMA17 42mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

Encoder Connections

RED	WHITE	BLACK	BLUE	YELLOW	GREEN
5V	0V	A+	A-	B+	B-

Motor connection

NEMA17 42mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer

NEMA17 42mm 2phase closed loop stepper motor with planetary gearbox/ stepper motor with encoder and planetary reducer Images
